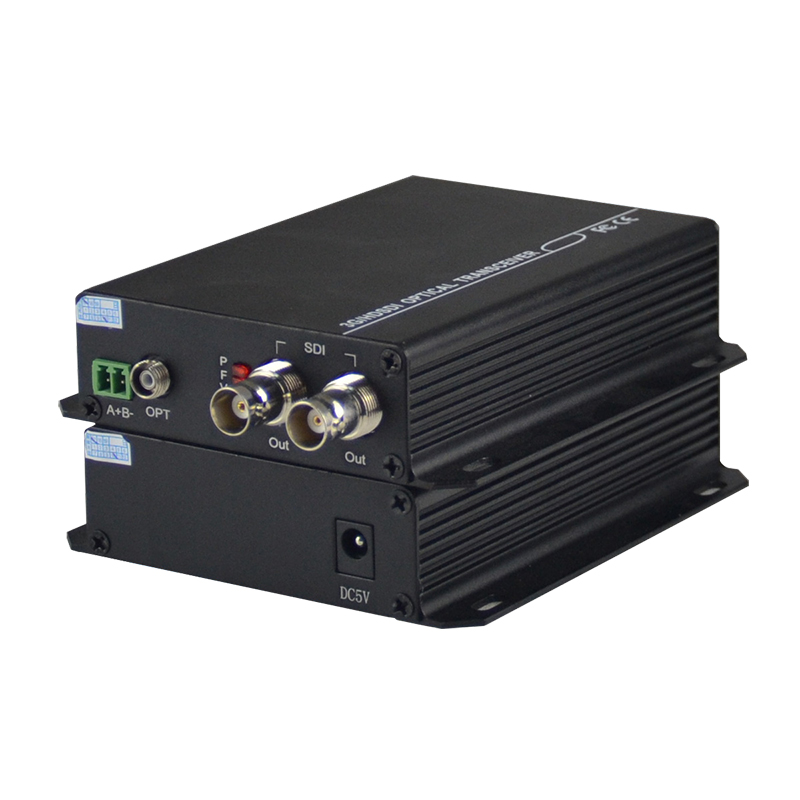

Part 2  Main features

• Compatible with ASI、SMPTE-292M HD-SDI standard signal, support 1485Mb/s and 2.97Gbps/s rate
• One bidirectional RS485 interface, using Phoenix terminal interface, supports up to 115.2Kb/s baud rate
• Support 1080P@60, 50, 30, 25, 24,, 1080I@60, 50,, 720P@60, 50, 30, 25, and many other video formats.
• The input has a cable equalization function, which can compensate for the loss of cable transmission
• Built-in ESD and surge protection circuit, can effectively prevent static electricity and lightning damage
• Provide light disappearing alarm, remote power-down alarm, output signal status indication and input signal lock status indication

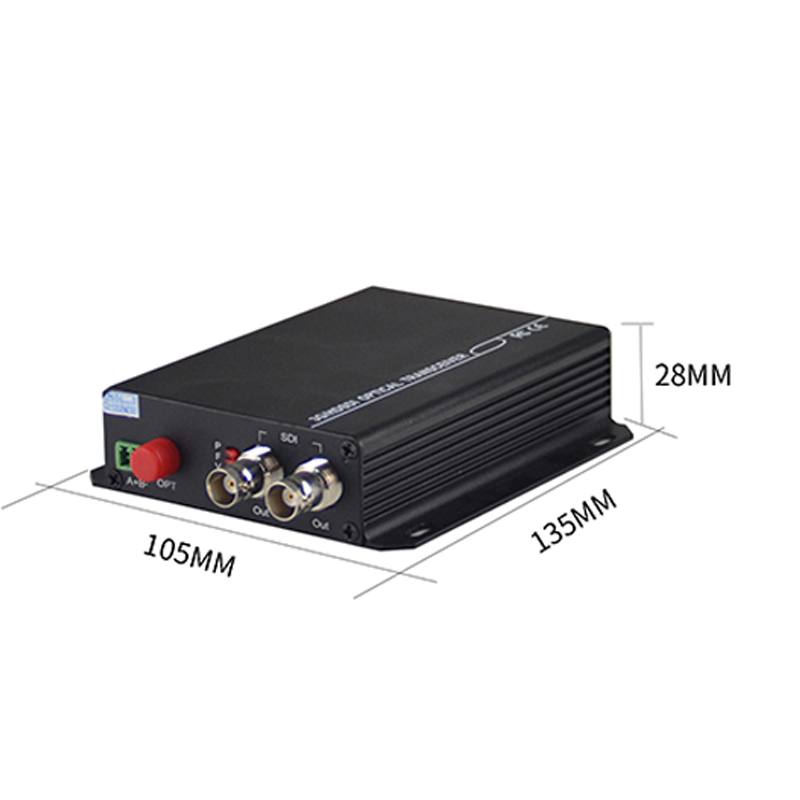

■ Optical fiber interface

Physical interface: FC/SC/lc (optional)

Fiber type: single mode/multimode, single fiber/dual fiber (optional)

Working wavelength: 1310nm, 1550nm

Transmission distance: 0～100Km (optional)

■ HD/SD-SDI serial digital video interface

Physical interface: BNC

Interface standard: HD-SDI (1.485Gbps, SMPTE292M), 3G-SDI (2.97Gbps, SMPTE424M)

Serial digital video input/output impedance: 75Ω unbalanced interface

Serial digital video input/output voltage: typical peak-to-peak 800mVp-p, 600～1000mVp-p

Support video format: single link 3G-SDI, HD-SDI SDI ASI

Support serial rate: 1.485Gbps～2.97Gbps

Video encoding bit width: 8bit or 10bit automatic

Return loss: ≤-15dB@5MHz～1.5GHz, -10dB@1.5GHz～3GHz

Retiming: automatic timing, automatic identification of various rates

Coupling mode: AC coupling

Equalization method: ≤140meters of Belden 1694A at 1.485Gbps

≤400meters of Belden 1694A at270Gbps

Maximum calibration jitter (100KHz～2.97Gbps): ≤0.2UI

Maximum timing jitter (100KHz～2.97Gbps): ≤0.2UI

Embedded audio, auxiliary space, EDH data: transparent support

■ EDH data

Signal to noise ratio (weighted): ≥70dB

■ Data interface

Physical interface: industry standard terminal block

Interface type: RS reverse 485

Speed: ≤115.2Kbps

Bit error rate: ≤10-9
