Tiantong No. 1 satellite terminal external antenna vehicle ship
Tiantong No. 1 satellite terminal external antenna vehicle ship
- Product Description: The antenna is an S-band terminal antenna covering 1980MHz-2010MHz and 2170MHz-2200MHz.
share:

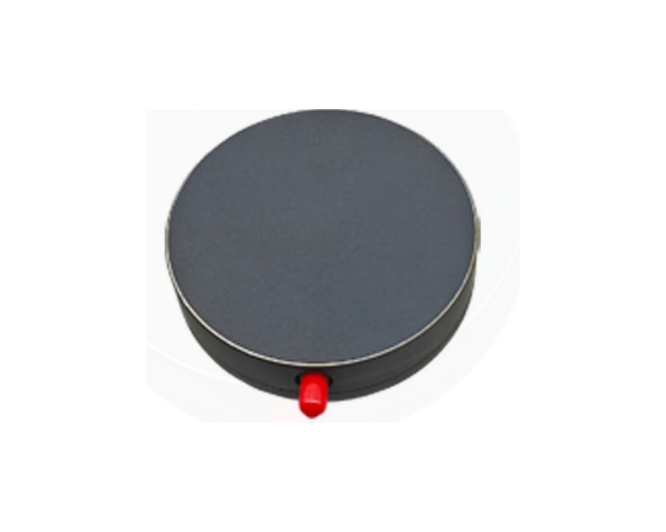

- Product Description: The antenna is an S-band terminal antenna covering 1980MHz-2010MHz and 2170MHz-2200MHz. The antenna is small in size, moderate in weight, easy to carry, and the outline is designed with low wind resistance and strong magnet. Especially suitable for all kinds of Tiantong-1 satellite communication vehicle equipment, shipborne equipment and high-speed mobile terminal communication equipment; With good moisture and waterproof characteristics, it can work in a variety of harsh environments, and can provide good transceiving and communication functions.
- Antenna specification
| Technical requirement | Technical index | remark |
| Frequency Range | 1980-2010MHz/2170-2200MHz | |
| Band Width | 30MHz | |
| Polarization | LHCP | |
| Zenith Gain | ≥ 3dBi±0.5dBi | |
| Output VSWR | ＜1.5 | Center frequency |
| Impendance | 50Ω | |
| Axis ratio | ＜3.0dB | Center frequency |
- Working environment
| Relative Humidity | 90% |
| Operating Temperature | -40～+70℃ |
| Store Temperature | -45～+80℃ |
- Structural characteristics
| Dimension | Φ94*30（H） ±2mm |
| Weight | ≤500g |
| Connector | SMA-K |
| CableType | LMR240(Φ6.1mm ） |
| Cable Length | 5000±50mm ，SMA-J |
| Cable Insert Loss | ≤0.8dB |
| Color | green |
| Mounting | Suction magnet |
