HDMI/DVI/SDI video matrix
HDMI/DVI/SDI video matrix
- 16*16
- 32*32
- 144*144
- Product description: 16*16,24*24.32*32,144*144,HDMI/DVI/SDI video matrix
share:
1.1 equipment composition

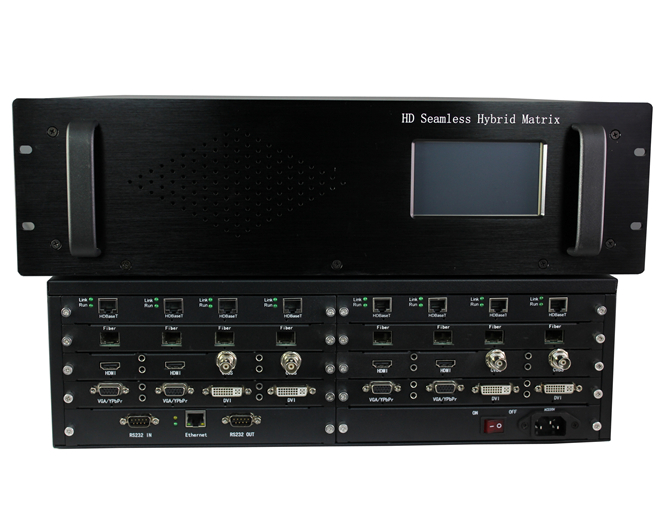

The CJ-MT2000 seamless hybrid matrix consists of a host box, an input and output card, and a communication card.
Input card:
The mixed input card (4 interface optional CVBS, VGA, YPbPr, HDMI, DVI)
Output card
The mixed output card (4 interface optional CVBS, VGA, YPbPr, HDMI, DVI, SDI)
1.2 performance characteristics
All digital switch;
The arbitrary signal input and output;
The real-time seamless handover;
The input signal of the adaptive resolution, adjustable output resolution;
The HDMI interface is compatible with DVI1.0 and HDMI1.4, support HDCP1.2, support Blu ray player, support DeepColor;
The CVBS, VGA and YPbPr analog input digital processing, the highest sampling frequency ADC
205Mhz, the internal image processing 24-bit processing, the color restore real, the highest resolution to
1920×1200@60Hz;
The CVBS input integrated advanced 3D adaptive comb filter and de interlacing, automatic
PAL, NTSC pattern recognition;
The SDI input 3G/HD/SD-SDI, rate of 143Mbps ~ 2.97Gbps, 259M, 292M, SMPTE compatible 344M, 424M, ITU R BT.601, ITU R BT.1120 serial video standard;
It supports analog audio input and output;
It supports SDI audio and demultiplexing (SMPTE291);
The 4.3 inch (32×32) /9.7 inch (72×72) touch screen operation, fast and beautiful.
The scene support storage and transfer.
The support of RS232 and Ethernet control, open control protocol, convenient third serial port control;
The support power off site protection;
The standard plug industrial chassis, a card 4;
The 1+1 redundant power supply (optional);
1.3 specification parameters
1.3.1 chassis parameters
|
size |
input channel |
output |
|
2U(43x43x8.9cm) |
8 |
8 |
|
3U(43x43x13cm) |
16 |
16 |
|
5U(43x43x22cm) |
32 |
32 |
|
11U(43x43x49cm) |
72 |
72 |
|
20U(43x43x90cm) |
144 |
144 |
1.3.2 Video input signal parameters
|
CVBS input |
|
|
impedance |
75Ω |
|
level |
1Vp-p |
|
Standard |
NTSC，PAL 自适应 |
|
Interface |
BNC |
|
YPbPr input |
|
|
impedance |
75Ω |
|
level |
0.7V |
|
Resolving |
480i,576i,480P,576P,720P,1080i50/60,
1080P25/30/50/60 |
|
Synchronous |
SOG
|
|
Interface |
DB15FM,(1-Cr,2–Y,3-Cb) |
|
VGA input |
|
|
impedance |
75Ω |
|
level |
0.7V |
|
Resolving |
VESA Often used 640x480@60Hz ～ |
|
|
1920x1200@60Hz |
|
Synchronous |
Independent |
|
interface |
DB15FM |
|
HDMI/DVI input |
|
|
clock |
25Mhz-225Mhz |
|
standard |
DVI1.0 HDMI1.3 HDCP1.2 |
|
Interface |
Type A 19pin HDMI or DVI-D |
|
SDI input |
|
|
rate |
143Mbps～2.97Gbps |
|
standard |
SMPTE 259M 、 292M 、 344M 、 424M, Audio compatibility SMPTE291 |
|
Interface |
BNC |
|
HDBaseT input |
|
|
distance |
≤100m (cat5,cat6) |
|
Maximum |
1920x1080@60 |
|
HDCP |
HDCP1.2 |
|
Fiber |
|
|
inteface |
LC |
|
wavelength |
850nm,1310nm，1550nm |
|
mode |
Multimode, |
|
rate |
3Gbps |
