Mini audio video encoder
Mini audio video encoder
A mini audio-video encoder is a compact hardware tool designed to compress and convert multimedia files efficiently.
share:
A mini audio-video encoder is a compact hardware tool designed to compress and convert multimedia files efficiently. It supports common formats while minimizing file size and preserving quality. Optimized for low-resource environments, it enables real-time encoding on devices like smartphones, IoT gadgets, or embedded systems. Key features include low latency, multi-format compatibility, and hardware acceleration support . Developers integrate its lightweight libraries or APIs for apps requiring streaming, video conferencing, or storage optimization. Open-source variants often prioritize modularity and cross-platform use . Despite its small footprint, it maintains robust error handling and bitrate control, making it ideal for bandwidth-constrained scenarios like telemedicine or drone videography.





| Specifications | Parameters |
| Video Input | 1×HDMI |
| Audio-Video Input | Audio input: 1×HDMI embedded audio, 1×external audio |
| Encoding Type | H.264/H.265 selectable |
| Encoding Frame Rate | 5-30 adjustable |
| Key Frame Interval (frames) | 5-300 adjustable |
| Bitrate (kbit) | 32-32000 adjustable |
| Maximum Support | 1920×1080P60 |
| Encoded Resolution | 1920×1080/1680×1056/1280×720/1024×576/850×480/720×576/720×540/720×480/640×480/640×360/608×448/
544×480/480×480/480×384/480×360/480×320/480×272/480×270/400×320/400×224/352×480/352×228/320×256/ 320×240/320×180/240×180/Same as input resolution |
| Video Encoding | H.264 Level: Baseline Profile/Main Profile/High Profile |
| Bitrate Control | CBR/VBR selectable |
| Streaming | Supports RTMP/RTSP/HTTP TS/HTTP FLV/HLS/SRT/UDP multicast/SRT/RTP multicast |
| Audio Input | HDMI/Analog selectable |
| Encoding Sample Rate | 44100/48000 selectable |
| Encoding Method | AAC/AAC+/AAC++/MP3/MP2/AC3 selectable |
| Encoding Bitrate | AAC: 48000-320000 adjustable |
| AAC+: 24000-48000 adjustable | |
| AAC++: 12000-32000 adjustable | |
| MP3: 64000-320000 adjustable | |
| MP2: 64000-320000 adjustable | |
| AC3: 40000-640000 adjustable | |
| Digital Volume | -50~50 adjustable |
| RTSP Stream Usage | Disabled/Enabled/Enabled with 8k resampling |
| G711A Encoding | Transparency: 0-128 adjustable |
| OSD Type | Text/Image/Scrolling Text/Time |
| Area | 4 selectable areas |
| OSD X Coordinate | 0-1920 |
| OSD Y Coordinate | 0-1080 |
| LOGO | Can upload 4 logos for selection |
| Font Size | 8-72 |
| Background Color | Transparent/White/Black |
| Font Color | RGB color selectable |
| Network | 100M Ethernet |
| Configuration Management | Web-based configuration management |
| ONVIF | Supports ONVIF discovery and video browsing |
| Power Supply | 12V DC, 2A |
| General | Power consumption: <2W |
| Operating Temperature | -20℃ to +60℃ |
| Operating Humidity | <90% RH, non-condensing |

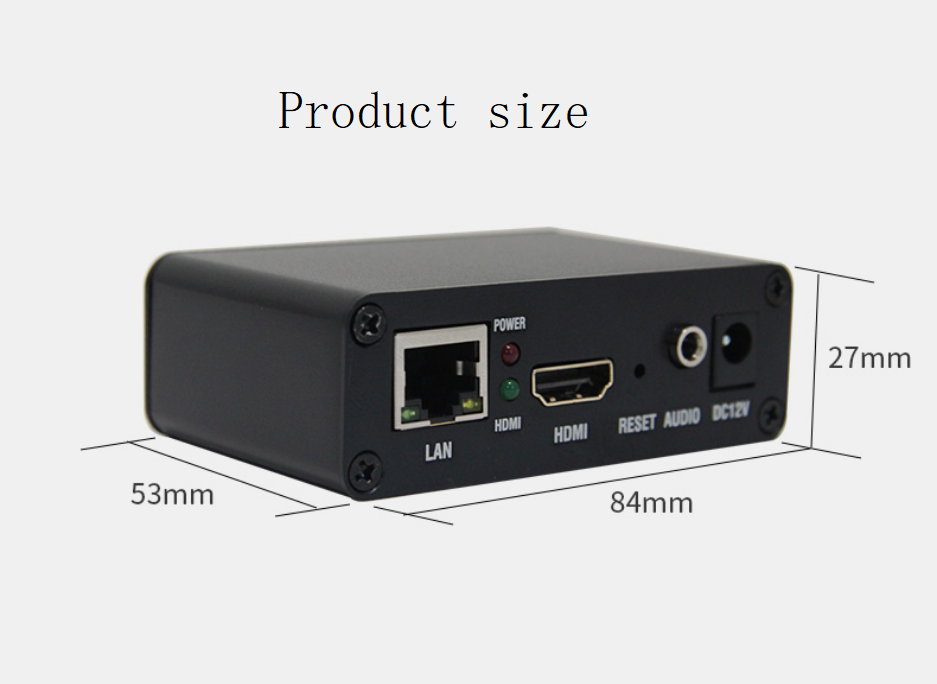

| Dimensions | 8.4cm × 5.3cm × 2.7cm |
| Weight | 112g |
