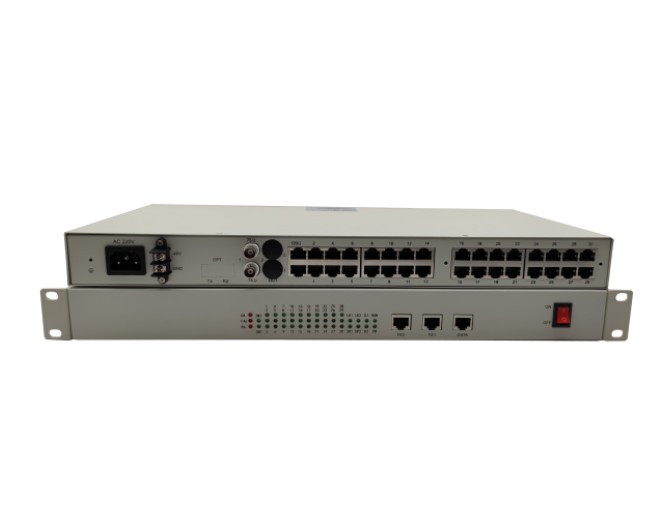

BH36-MUX series is a PCM multiplex device. It provides integrated services such as telephone, audio, data, and image services. The BH36-MUx series implements point-to-point communication of integrated service signals through multiplex E1 or optical fiber transmission.

With a modular design, the BH36-MUX series offers 30 universal service slots that allow you to assemble your equipment exactly as required by your business and quantity, just like a customized product. The device is convenient to expand, effectively support the current service requirements and future service expansion, and provide customers with an economical and efficient solution. Optional synchronization radar data, transfer data, weather radar data, VHF, CDM and other business modules.
Product characteristics
Modular design, high integration, stable and reliable performance

◆ Provides 10-channel synchronous V24 data, asynchronous RS232, radio audio, network and other services

V24 mixer synchronous data rate b/S optional 9600/19200/38400/64000

◆ System clock: Internal clock/Synchronous V24 Data clock /E1 clock Optional

Serial port monitoring software, support device configuration and status query

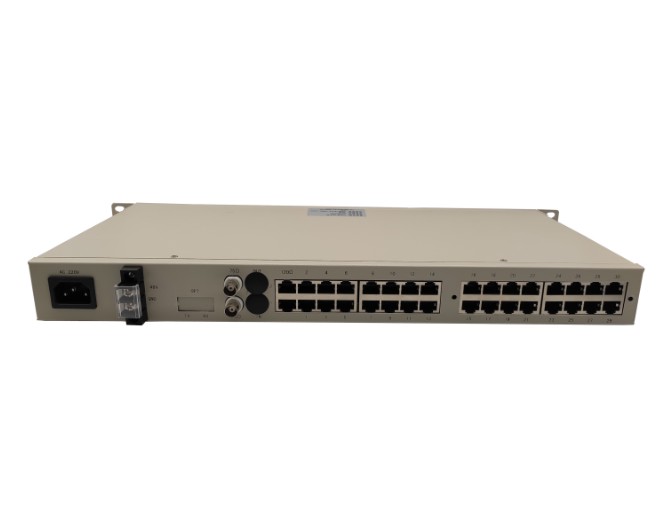

◆ Group port: Two E1 or optical fiber ports

◆ AC 220V/-48V DC dual power supply, easy to use

Perfect status display, easy to maintain and manage

Technical index
◆ E1 port

Interface code type: HDB3 code

Line speed: 2.048Mbp/s±50ppm

Interface impedance: 75Ω / unbalanced, 120Ω / balanced

Physical interface: BNC(75Ω)/RJ45(120Ω)

Standards: ITU-T G.703, G.704

Jitter feature: Meet G.704 and G.823

◆ Synchronize V24 interfaces

Provides 10 channels to synchronize V24 data

Physical port: RJ45

Rate: b/S optional 9600/19200/38400/64000

◆ System clock

Internal Clock/Synchronization V24 Data Clock /E1 Clock This parameter is optional

◆ Power supply

Supports dual power supply

-48V DC(-36 ~ -72V)

220V AC(165 ~ 265V)

Power consumption: less than 10W

◆ Mechanical structure

19 inches 1U
